HAProxy is an open-source software that provides a high-availability load balancer and proxy server for TCP and HTTP-based applications that spreads requests across multiple servers.

The Sumo Logic app for HAProxy is a unified logs and metrics app that helps you monitor the availability, performance, and health of your HAProxy cluster. Preconfigured dashboards provide insights into active servers, visitor locations, sessions, errors, response time, and throughput.

HAProxy log types​

The app supports Logs and Metrics from the open-source version of HAProxy. The app is tested on the 2.3.9 version of HAProxy.

The HAProxy logs are generated in files as configured in the configuration file /etc/haproxy/haproxy.cfg (learn more).

The Sumo Logic app for HAProxy supports metrics generated by the HAProxy plugin for Telegraf. The app assumes Prometheus format Metrics.

Sample log messages​

{
  "timestamp": 1620894084572,
  "log": "<150>May 13 08:21:20 haproxy[9]: 127.0.0.1:38718 stats stats/<STATS> 0/0/0/0/0 200 3926 - - LR-- 1/1/0/0/0 0/0 \"GET /haproxy?stats/;csv HTTP/1.1\"",
  "stream": "stdout",
  "time": "2021-05-13T08:21:20.005706219Z"
}

Sample queries​

This query example is from the HAProxy - Overview dashboard > Top 5 Clients causing Errors panels.

<HAProxy_Cluster_Filter> proxy_system=haproxy component=proxy
| json "log" as _rawlog nodrop
| if (isEmpty(_rawlog), _raw, _rawlog) as haproxy_log_message
| parse regex field=haproxy_log_message "(?<syslog_host>[\w\-\.]+) (?<ps>\w+)\[(?<pid>\d+)\]: (?<c_ip>[\w\.]+):(?<c_port>\d+) (?<rs>[^\"]*) (?<status_code>\d+) (?<bytes>\d+) (?<req_cookie>\S+) (?<res_cookie>\S+) (?<t_state>[\w-]+) (?<actconn>\d+)/(?<feconn>\d+)/(?<beconn>\d+)\/(?<srv_conn>\d+)/(?<retries>\d+) (?<srv_queue>\d+)/(?<backend_queue>\d+) \"(?<method>\w+) (?<request>[^\"]*) (?<http_version>\w+)"
| where status_code matches "4*" or status_code matches "5*" and  !isEmpty(c_ip)
| count by c_ip
| sort by _count
| limit 5

Collecting logs and metrics for HAProxy​

This section provides instructions for configuring logs and metrics collection for the Sumo Logic app for HAProxy.

Configuring log and metric collection for the HAProxy app includes the following tasks:

Configure collection for HAProxy​

Sumo Logic supports the collection of logs and metrics data from HAProxy in both Kubernetes and non-Kubernetes environments.

In Kubernetes environments, we use the Telegraf Operator, which is packaged with our Kubernetes collection (learn more). The diagram below illustrates how data is collected from HAProxy in Kubernetes environments. In the architecture shown below, there are four services that make up the metric collection pipeline: Telegraf, Telegraf Operator, Prometheus, and Sumo Logic Distribution for OpenTelemetry Collector.

haproxy k8s flow

The first service in the pipeline is Telegraf. Telegraf collects metrics from HAProxy. Note that we’re running Telegraf in each pod we want to collect metrics from as a sidecar deployment for example, Telegraf runs in the same pod as the containers it monitors. Telegraf uses the HAProxy input plugin to obtain metrics. For simplicity, the diagram doesn’t show the input plugins. The injection of the Telegraf sidecar container is done by the Telegraf Operator. Prometheus pulls metrics from Telegraf and sends them to Sumo Logic Distribution for OpenTelemetry Collector, which enriches metadata and sends metrics to Sumo Logic.

In the logs pipeline, Sumo Logic Distribution for OpenTelemetry Collector collects logs written to standard out and forwards them to another instance of Sumo Logic Distribution for OpenTelemetry Collector, which enriches metadata and sends logs to Sumo Logic.

Prerequisites

It’s assumed that you are using the latest helm chart version. If not, upgrade using the instructions here.

Configure metrics collection​

This section explains the steps to collect HAProxy metrics from a Kubernetes environment. In Kubernetes environments, we use the Telegraf Operator, which is packaged with our Kubernetes collection. You can learn more on this here. Follow the steps listed below to collect metrics from a Kubernetes environment.

  1. On your HAProxy Pods, add the following annotations:
annotations:
    telegraf.influxdata.com/class: sumologic-prometheus
    prometheus.io/scrape: "true"
    prometheus.io/port: "9273"
    telegraf.influxdata.com/inputs: |+
[[inputs.haproxy]]
  servers = ["http://127.0.0.1:1024/stats"]
  [inputs.haproxy.tags]
    environment="dev_CHANGEME"
    component="proxy"
    proxy_system="haproxy"
    proxy_cluster="haproxy_on_k8s_CHANGEME"

  1. Enter in values for the following parameters (marked CHANGEME above):

    • telegraf.influxdata.com/inputs. This contains the required configuration for the Telegraf HAProxy Input plugin. See this doc for more information on configuring the HAProxy input plugin for Telegraf. As telegraf will be run as a sidecar, the host should always be localhost.
    • In the input plugins section:
      • servers. The URL to the HAProxy server. This can be a comma-separated list to connect to multiple HAProxy servers. See this doc for more information on additional parameters for configuring the HAProxy input plugin for Telegraf.
      • In the tags section [inputs.haproxy.tags]
        • environment. This is the deployment environment where the HAProxy cluster identified by the value of servers resides. For example: dev, prod, or qa. While this value is optional we highly recommend setting it.
        • proxy_cluster. Enter a name to identify this HAProxy cluster. This cluster name will be shown in the Sumo Logic dashboards.
    Do not modify the following values.

    Modifying these values will cause the Sumo Logic apps to function incorrectly.

    • telegraf.influxdata.com/class: sumologic-prometheus. Instructs the Telegraf operator on what output to use.
    • prometheus.io/scrape: "true". Ensures our Prometheus will scrape the metrics.
    • prometheus.io/port: "9273" - Tells Prometheus what ports to scrape on.
    • telegraf.influxdata.com/inputs. In the tags section, for example: [inputs.haproxy.tags].
    • component: “proxy”. Used by Sumo Logic apps to identify application components.
    • proxy_system: “haproxy” - Identifies the proxy system.

    For all other parameters, please see this doc for more parameters that can be configured in the Telegraf agent globally.

  2. Kubernetes collection will start collecting metrics from the pods having the labels and annotations defined in the previous step.

  3. Verify metrics in Sumo Logic.

Configure logs collection​

This section explains the steps to collect HAProxy logs from a Kubernetes environment.

  1. Add labels on your HAProxy pods to capture logs from the standard output (stdout) on Kubernetes:
labels:
  environment: "prod"
  component: "proxy"
  proxy_system: "haproxy"
      proxy_cluster: "haproxy_prod_cluster01"

  1. Enter in values for the following parameters:

    • environment. This is the deployment environment where the HAProxy cluster identified by the value of servers resides. For example: dev, prod, or qa. While this value is optional we highly recommend setting it.
    • proxy_cluster. Enter a name to identify this HAProxy cluster. This cluster name will be shown in the Sumo Logic dashboards.
    Do not modify the following values

    Modifying these values will cause the Sumo Logic apps to function incorrectly.

    • component: “proxy”. This value is used by Sumo Logic apps to identify application components.
    • proxy_system: “haproxy”. This value identifies the proxy system.

    For all other parameters see this doc for more parameters that can be configured in the Telegraf agent globally.

  2. Collecting HAProxy Logs from a Log File (Optional). Follow the steps below to capture HAProxy logs from a log file on Kubernetes.

  3. Determine the location of the HAProxy log file on Kubernetes. This can be determined from the HAProxy.conf for your HAProxy cluster along with the mounts on the HAProxy pods.

  4. Install the Sumo Logic tailing sidecar operator.

  5. Add the following annotation in addition to the existing annotations.

annotations:
  tailing-sidecar: sidecarconfig;<mount>:<path_of_Haproxy_log_file>/<Haproxy_log_file_name>

Example:

annotations:
  tailing-sidecar: sidecarconfig;data:/var/log//haproxy.log
  1. Make sure that the HAProxy pods are running and annotations are applied by using the command:
kubectl describe pod <haproxy_pod_name>
  1. Sumo Logic Kubernetes collection will automatically start collecting logs from the pods having the annotations defined above.

FER to normalize the fields in Kubernetes environments. Labels created in Kubernetes environments automatically are prefixed with pod_labels. To normalize these for our app to work, a Field Extraction Rule named AppObservabilityHaproxyFER is automatically created for Proxy Application Components.


Verify logs are flowing into Sumo Logic by running the following logs query:

component="proxy" proxy_cluster="<Your-HAProxy-Server>" proxy_system="haproxy"

Installing the HAProxy app​

Now that you have set up collection for HAProxy, you can install the HAProxy app to use the pre-configured searches and dashboard that provide insight into your data.

To install the app, do the following:

note

Next-Gen App: To install or update the app, you must be an account administrator or a user with Manage Apps, Manage Monitors, Manage Fields, Manage Metric Rules, and Manage Collectors capabilities depending upon the different content types part of the app.

  1. Select App Catalog.
  2. In the 🔎 Search Apps field, run a search for your desired app, then select it.
  3. Click Install App.
    note

    Sometimes this button says Add Integration.

  4. Click Next in the Setup Data section.
  5. In the Configure section of your respective app, complete the following fields.
    1. Field Name. If you already have collectors and sources set up, select the configured metadata field name (eg _sourcecategory) or specify other custom metadata (eg: _collector) along with its metadata Field Value.
    2. Is K8S deployment involved. Specify if resources being monitored are partially or fully deployed on Kubernetes (K8s)
  6. Click Next. You will be redirected to the Preview & Done section.

Post-installation

Once your app is installed, it will appear in your Installed Apps folder, and dashboard panels will start to fill automatically.

Each panel slowly fills with data matching the time range query received since the panel was created. Results will not immediately be available but will be updated with full graphs and charts over time.

As part of the app installation process, the following fields will be created by default:

  • component
  • environment
  • proxy_system
  • proxy_cluster
  • pod

Additionally, if you're using HAProxy in the Kubernetes environment, the following additional fields will be created by default during the app installation process:

  • pod_labels_component
  • pod_labels_environment
  • pod_labels_proxy_system
  • pod_labels_proxy_cluster

Viewing the HAProxy dashboards​

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

  • You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
  • You can use template variables to drill down and examine the data on a granular level. For more information, see Filtering Dashboards with Template Variables.
  • Most Next-Gen apps allow you to provide the scope at the installation time and are comprised of a key (_sourceCategory by default) and a default value for this key. Based on your input, the app dashboards will be parameterized with a dashboard variable, allowing you to change the dataset queried by all panels. This eliminates the need to create multiple copies of the same dashboard with different queries.

Overview​

The HAProxy - Overview dashboard provides an at-a-glance view of HAProxy Backend and Frontend HTTP error codes percentage, visitor location, URLs, and Clients causing errors.

  • Identify Frontend and Backend Session percentage usage to understand active sessions. This can help you increase the HAProxy session limit.
  • Gain insights into originated traffic location by region. This can help you allocate computer resources to different regions according to their needs.
  • Gain insights into Client and Server Responses on the HAProxy Server. This helps you identify errors in the HAProxy Server.
  • Gain insights into Network traffic for the Frontend and Backend system of your HAProxy server.
test

Backend​

The HAProxy - Backend dashboard provides an at-a-glance view for the number of backend active servers, backend weight, response code from the backend, and throughput HTTP.

Backend dashboard

Frontend​

The HAProxy - Frontend dashboard provides an at-a-glance view detail of HAProxy Frontend. It provides information such as the number of requests to the front end, the number of error requests, and the current session.

test

Server​

The HAProxy - Server dashboard provides an at-a-glance view detail of the HAProxy Server. This dashboard helps you monitor uptime, and error requests by proxy.

test

Error Log Analysis​

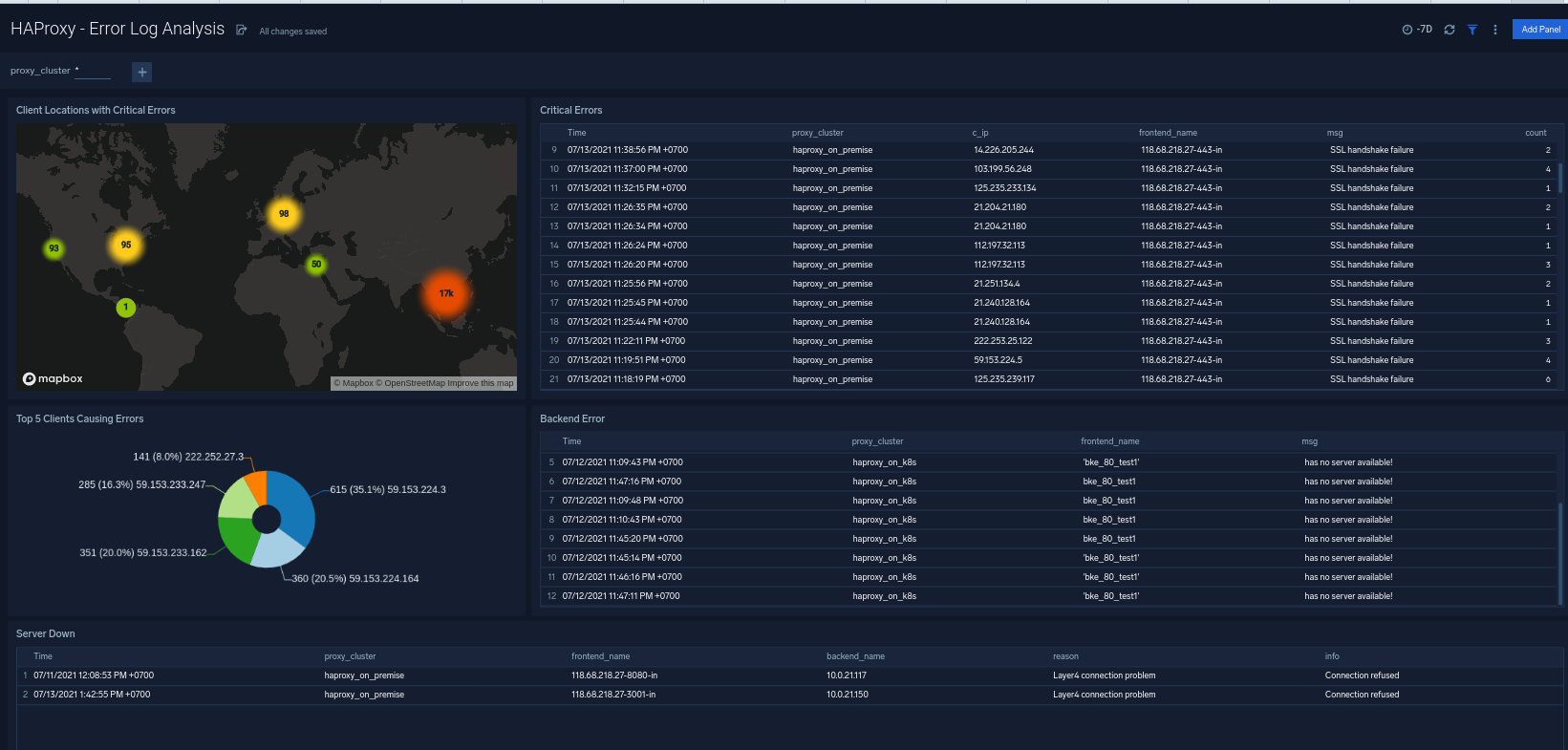

The HAProxy - Error Logs Analysis dashboard provides a high-level view of log level breakdowns, comparisons, and trends. The panels also show the geographic locations of clients and clients with critical messages, new connections, outliers, client requests, request trends, and request outliers.

Use this dashboard to:

  • Track requests from clients. A request is a message asking for a resource, such as a page or an image.
  • To track and view client geographic locations generating errors.
  • Track critical alerts and emergency error alerts.
test

Outlier Analysis​

The HAProxy - Outlier Analysis dashboard provides a high-level view of HAProxy server outlier metrics for bytes served, number of visitors, and server errors. You can select the time interval over which outliers are aggregated, then hover the cursor over the graph to display detailed information for that point in time.

Use this dashboard to:

  • Detect outliers in your infrastructure with Sumo Logic’s machine-learning algorithm.
  • To identify outliers in incoming traffic and the number of errors encountered by your servers.
test

Threat Analysis​

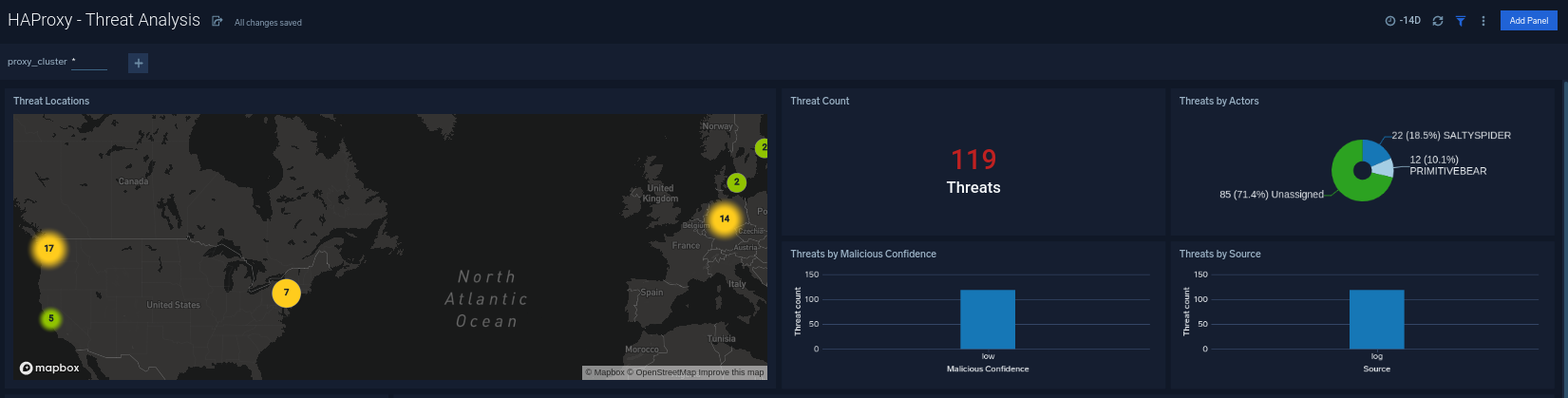

The HAProxy - Threat Analysis dashboard provides an at-a-glance view of threats to HAProxy servers on your network. Dashboard panels display the threat count over a selected time period, geographic locations where threats occurred, source breakdown, actors responsible for threats, severity, and a correlation of IP addresses, method, and status code of threats.

Use this dashboard to:

  • To gain insights and understand threats in incoming traffic and discover potential IOCs. Incoming traffic requests are analyzed using Sumo Logic threat intelligence.
test

The HAProxy - Trends dashboard provides an at-a-glance view of traffic to HAProxy servers on your network. Dashboard panels display the traffic count over a day, and locations where traffic trends for visits by country one days time.

test

Visitor Access Types​

The HAProxy - Visitor Access Types dashboard provides insights into visitor platform types, browsers, and operating systems, as well as the most popular mobile devices, PC and Mac versions used.

Use this dashboard to:

  • Understand which platform and browsers are used to gain access to your infrastructure. These insights can be useful for planning in which browsers, platforms, and operating systems (OS) should be supported by different software services.
test

Visitor Locations​

The HAProxy - Visitor Locations dashboard provides a high-level view of HAProxy visitor geographic locations both worldwide and in the United States. Dashboard panels also show graphic trends for visits by country over time and visits by US region over time.

Use this dashboard to:

  • Gain insights into the geographic locations of your user base. This is useful for resource planning in different regions across the globe.
test

Visitor Traffic Insight​

The HAProxy - Visitor Traffic Insight dashboard provides detailed information on the top documents accessed, top referrers, top search terms from popular search engines, and the media types served.

Use this dashboard to:

  • To understand the type of content that is frequently requested by users.
  • It helps in allocating IT resources according to the content types.
test

Web Server Operations​

The HAProxy - Web Server Operations dashboard provides a high-level view combined with detailed information on the top ten bots, geographic locations, and data for clients with high error rates, server errors over time, and non 200 response code status codes. Dashboard panels also show information on server error logs, error log levels, error responses by a server, and the top URIs responsible for 404 responses.

Use this dashboard to:

  • Gain insights into Client and Server responses on the HAProxy Server. This helps you identify errors in the HAProxy Server.
  • To identify geo-locations of all Client errors. This helps you identify client location causing errors and helps you to block client IPs.
test

Create monitors for HAProxy app​

From your App Catalog:

  1. From the Sumo Logic navigation, select App Catalog.
  2. In the Search Apps field, search for and then select your app.
  3. Make sure the app is installed.
  4. Navigate to What's Included tab and scroll down to the Monitors section.
  5. Click Create next to the pre-configured monitors. In the create monitors window, adjust the trigger conditions and notifications settings based on your requirements.
  6. Scroll down to Monitor Details.
  7. Under Location click on New Folder.
    note

    By default, monitor will be saved in the root folder. So to make the maintenance easier, create a new folder in the location of your choice.

  8. Enter Folder Name. Folder Description is optional.
    tip

    Using app version in the folder name will be helpful to determine the versioning for future updates.

  9. Click Create. Once the folder is created, click on Save.

HAProxy alerts​

Here are the alerts available for Haproxy (click to expand).
Alert Type (Metrics/Logs)Alert NameAlert DescriptionTrigger Type (Critical / Warning)Alert ConditionRecover Condition
LogsHAProxy - Access from Highly Malicious SourcesThis alert fires when a HAProxy is accessed from highly malicious IP addresses.Critical> 0< = 0
LogsHAProxy - High Client (HTTP 4xx) Error RateThis alert fires when there are too many HTTP requests (>5%) with a response status of 4xx.Critical> 00
LogsHAProxy - High Server (HTTP 5xx) Error RateThis alert fires when there are too many HTTP requests (>5%) with a response status of 5xx.Critical> 00
LogsHAProxy - Backend ErrorThis alert fires when we detect backend server errors.Critical>0< = 0
LogsHAProxy - Backend Server DownThis alert fires when we detect a backend server for a given HAProxy server is down.Critical>0< = 0
MetricsHAProxy - High Active Backend Server Sessionswhen the percentage of backend server connections is high.Warning>80< = 80
MetricsHAProxy - Frontend Security Blocked RequestsHAProxy is blocking requests for security reasonsWarning>10< = 10
MetricsHAProxy - Has No Alive BackendsHAProxy has no alive active or backup backend serversCritical>0< = 0
MetricsHAProxy - Slow Response TimeThe HAProxy response times are greater than one second.Critical>1< = 1
MetricsHAProxy - Pending RequestsHAProxy requests are pendingWarning>0< = 0
MetricsHAProxy - Retry Highthere is a high retry rateWarning>0< = 0
MetricsHAProxy - High Server Connection ErrorsThere are too many connection errors to backend servers.Warning>100< = 100
MetricsHAProxy - Server Healthcheck Failureserver healthchecks are failing.Warning>0< = 0
